Refrigerated  Air / Water Intercooler      RAWIC

The RAWIC is an experimental project.  It is designed to produce an intercooler system that uses the cars AC compressor to cool water circulating through an air/water intercooler.  Water coming out of the intercooler is first pumped through a heat exchanger mounted to the front of the car.  From there is returns to a cooling tank mounted in the trunk.  It is channeled past a cooling core built into the tank.  This core is part of the AC system and shares it's refrigerant.  The core is downstream of the compressor and actually improves the cars air conditioning while in use.  The tank has special baffles built inside which cause the water to move in and out of the core.  The internal design of the tank accounts for much of the success of the system.

Testing:  Many hours of testing have been done with the system.  The first tests were conducted without a heat exchanger.  The results of several different road tests are shown below.  Testing with the new front mounted heat exchanger have not been done yet.  A broken valve and "crank walk" problems have required a rebuild of the engine.  The rebuilt engine is about ready to install in the car.  Once the engine is broken in, testing will continue.

Please excuse the charts.  They were imported from different formats and I have yet to learn how to get them all the same.

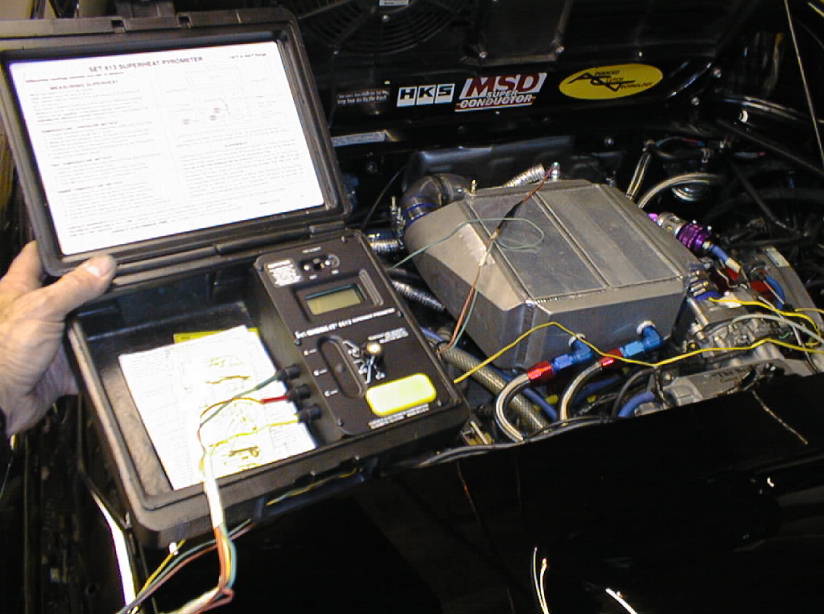

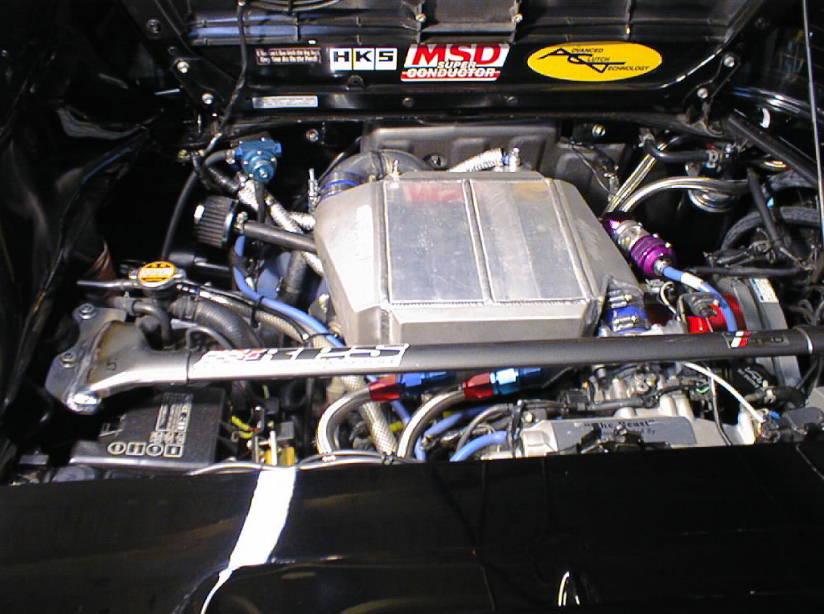

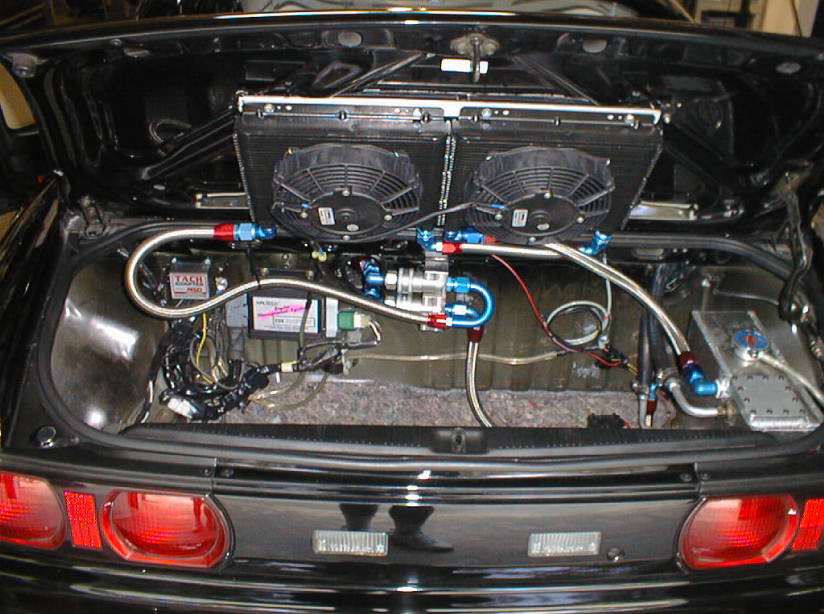

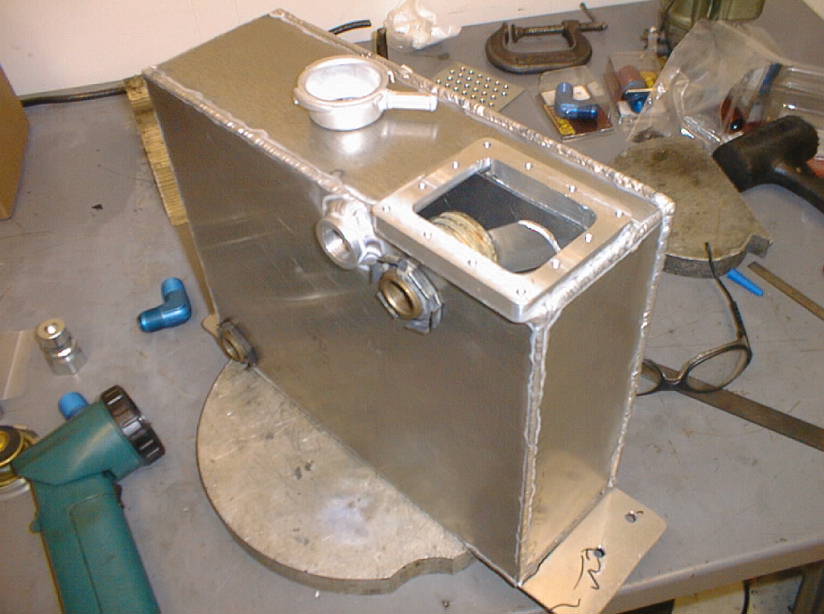

             Pyrometer                      Original heat exchanger/Removed     Tank under construction               RAWIC mounted in car

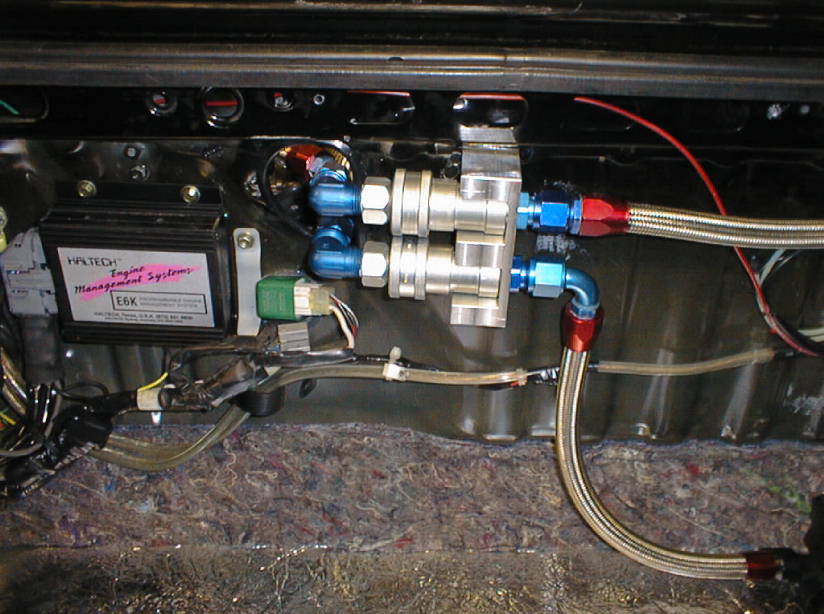

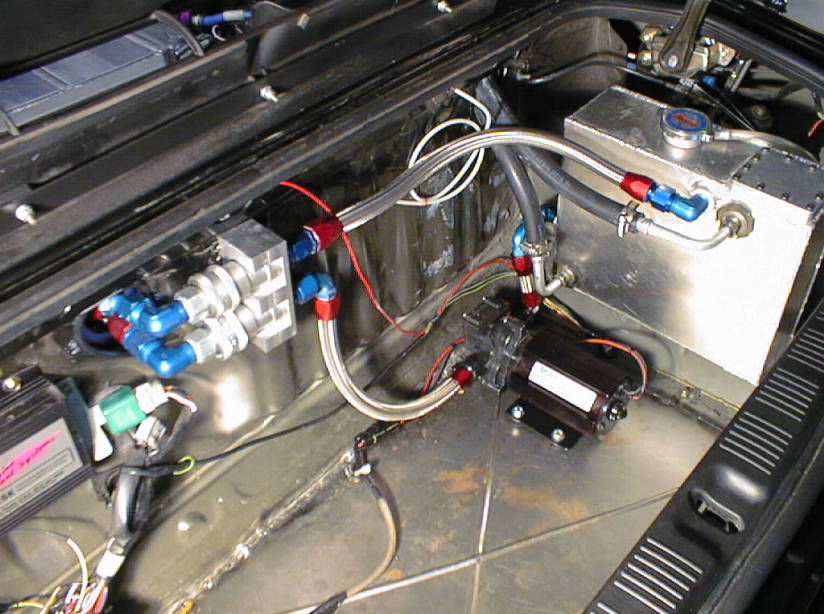

 Tank, Pump, Quick disconnect          Pryometer wiring                       Quick disconnect fittings               Pyrometer wire hookups

Local roads                        80                              106                                         79

40 mph

__________________________________________

Local Roads                       80                              131                                         88

40 to 60 mph                      80                               123                                         82

Max 5000 rpm                    80                               160                                         88

14 psi                                 80                               162                                       114

(Four runs made one after another)
__________________________________________

Interstate 70 mph                82                               151                                         90

3200 rpm

Up slight hill

5 psi
__________________________________________

Interstate                            82                                173                                         98

65 to 90 mph                      82                                177                                        103

18 psi

__________________________________________

After leaving interstate drove car on local roads at 35 mph for 8 minutes. Sudden 18 psi run to 6000 rpm in second gear.                                  82                                 173                                        103

________________________________________________________________________________________
